Regeneration of Urban Village Memory by BENTU DESIGN
Inorganic Growth is a research-driven project by BENTU DESIGN that converts construction waste from demolished urban villages into 3D printed urban furniture. By combining material reactivation with digital fabrication, the initiative transforms discarded concrete, brick rubble, and mortar into printable composites with cementitious performance. The developed material contains up to 85% recycled solid waste, positioning demolition debris as a reusable resource within a closed production system.
The project, featuring a chair and stool made from recycled construction waste, integrates material recovery, on-site processing, and additive manufacturing into a continuous workflow. This localized cycle reduces transportation requirements and lowers carbon emissions while preserving material value. Through this approach, waste is not removed from the urban environment but reintegrated into it in a new functional form.
all images courtesy of BENTU DESIGN
Inorganic Growth Turns Debris into Printable Composite
Construction waste from urban village demolition sites is treated through graded crushing and sorting processes. Primary crushing is conducted using a jaw crusher, followed by secondary shaping through impact crushing. Multi-layer vibrating screening then separates aggregates by particle size. Micro-fine powder (0–3 mm), accounting for approximately 30–35% of the waste stream, undergoes mechanical activation and chemical excitation. This fraction is combined with industrial by-products such as fly ash, slag powder, and silica fume to form a recycled cementitious component with binding potential. Coarse aggregates (3–6 mm) serve as the structural framework of the printable material.
To improve performance, nano-suspension surface modification reduces aggregate water absorption from 8–10% to 3–5% and increases the strength of the interfacial transition zone by over 40%. Through these adjustments, BENTU DESIGN Studio addresses common limitations associated with high recycled content in additive manufacturing materials. The mixture is formulated to meet the dual requirement of extrusion fluidity and post-deposition stability. Thixotropic agents and AI-assisted mix optimization enable consistent printability while maintaining structural integrity. The result is a material system that balances workability, durability, and high recycled content.

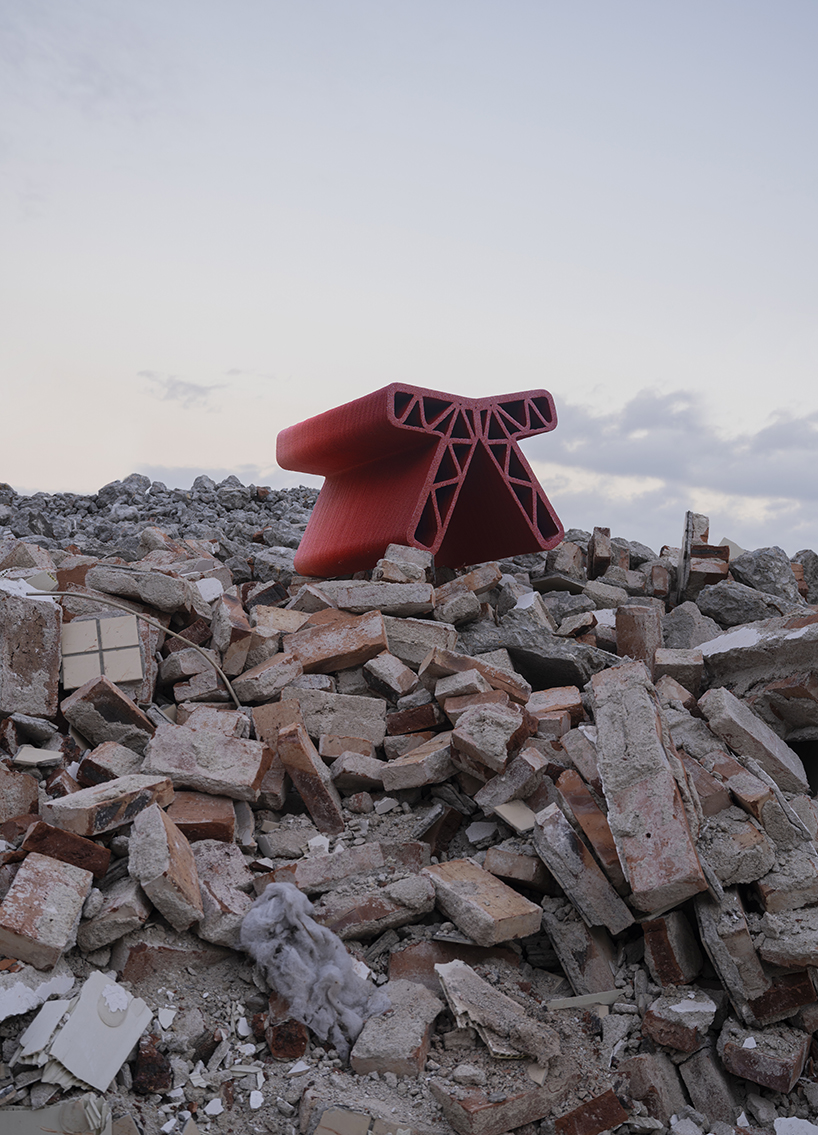

construction waste from demolished urban villages is transformed into 3D printed urban furniture
Urban Village Colors Reconstructed Through 3D Printing
The visual language of the series draws from the material culture of urban villages. Photographic documentation of demolished sites is analyzed through image-processing algorithms to extract representative color values. These include iron-red tones from brick, cement-gray from concrete, muted greens from weathered surfaces, and blue hues from glazed tiles. Coloration is achieved through the inherent mineral composition of the recycled materials combined with inorganic pigments. Brick powder contributes red tones, concrete fines produce neutral grays, and crushed ceramic fragments introduce blue-green variations.
Using the layer-by-layer deposition logic of Fused Deposition Modeling (FDM), a dynamic gradient control system was developed. Dual print heads allow calibrated pigment distribution along the vertical axis, generating gradual chromatic transitions. The furniture surfaces thus resemble stratified sections, where material layers reference accumulated time and site history. The color gradients are not applied as decoration but emerge directly from material composition and deposition sequence. This method links fabrication logic with contextual memory while minimizing additional surface treatments.

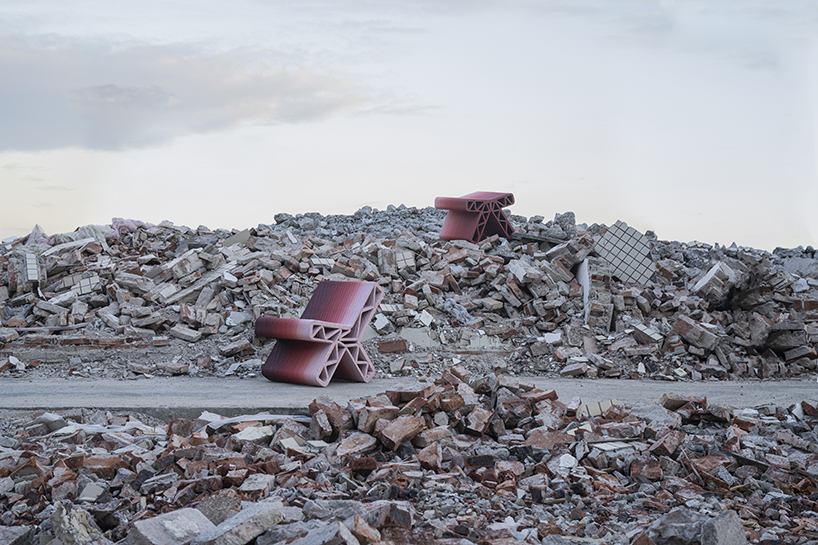

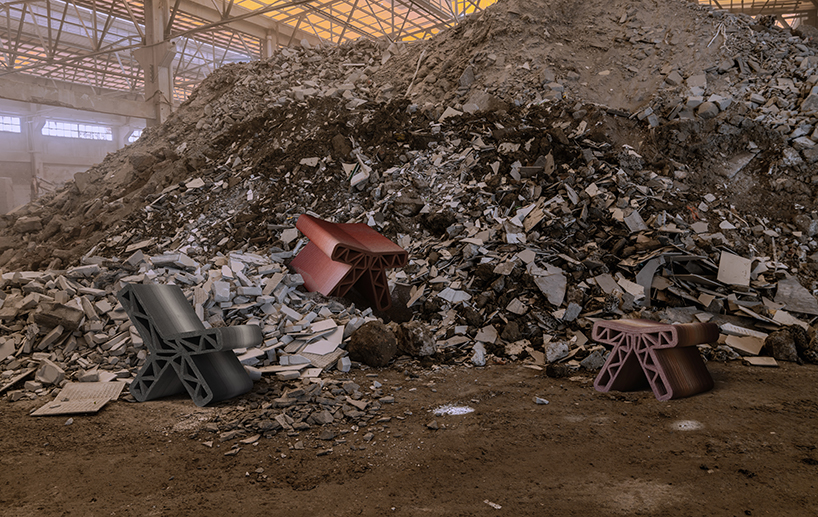

concrete fragments, brick rubble, and mortar are reprocessed into printable cementitious composites
From Demolition Debris to Regenerative Urban Infrastructure
A mobile processing unit installed at demolition sites enables an integrated sequence of crushing, sorting, material preparation, and printing. This localized workflow reduces transportation-related carbon emissions by approximately 70% and achieves a material utilization rate of 92%. Compared to conventional concrete prefabrication or metal fabrication, 3D printed recycled concrete furniture reduces carbon emissions by an estimated 65–80%. Intelligent slicing algorithms further optimize geometry, lowering material consumption by an average of 40% without compromising structural performance. Through digital precision and material reuse, the project establishes a closed technical loop in which waste, production, and deployment occur within the same urban context.
Beyond its technical framework, Inorganic Growth positions matter as a carrier of continuity. By retaining the physical substance of demolished structures, the furniture maintains a tangible link to former urban environments. The stratified surfaces reference processes of accumulation, erosion, and transformation embedded in the material itself. Rather than isolating sustainability as a separate objective, the project integrates environmental performance, digital manufacturing, and contextual reference within a unified design system. The result is urban furniture that operates simultaneously as infrastructure, recycled material archive, and spatial marker. Inorganic Growth demonstrates how demolition waste can be repositioned within a regenerative cycle. Through controlled processing, additive fabrication, and calibrated material composition, discarded matter is reintroduced into public space with renewed structural and cultural relevance.

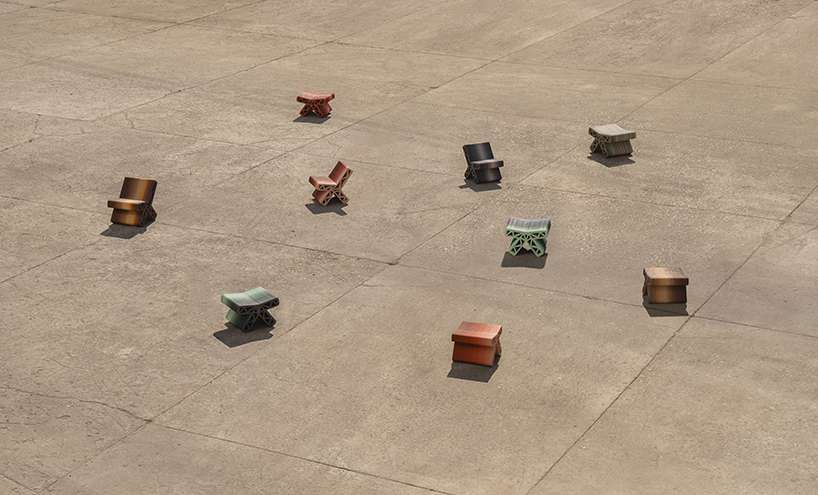

demolition debris is reintegrated into the urban environment as functional public furniture
